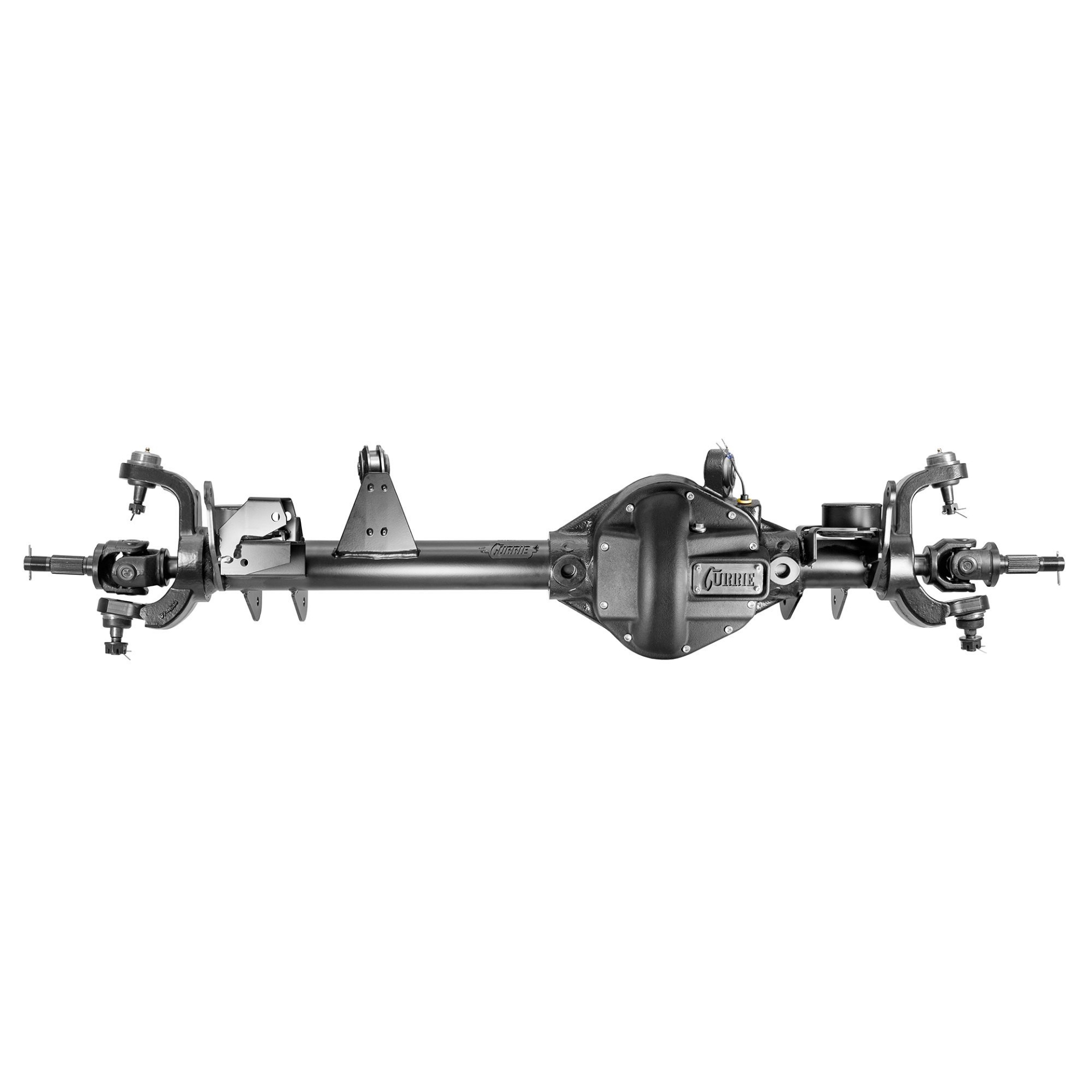

Currie 44 - Jeep TJ/LJ/XJ Front Axle Assembly

Name: Currie 44 - Jeep TJ/LJ/XJ Front Axle Assembly
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

The Currie 44 front axle assembly for Jeep TJ/LJ/XJ vehicles is a direct bolt-in assembly with superior strength in a lightweight package designed for heavy off-road use. The Currie 44 is designed for heavy off-road with up to 37-inch tall tires and features a significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is ready for off-road adventure.

Currie 44 Features:

Direct Bolt-in Fit for Wrangler TJ/LJ/XJ
Stock TJ 60.5 in. Overall Width
Currie High-Pinion Reinforced Center Section
3 in. Diameter, .5 in. Wall DOM Axle Tubes
Currie Forged TJ Inner Knuckles
4340 Chromoly Inner and Outer Axles
Steering Geometry and Brackets Setup for Stock Height or Lifted Vehicles
Satin Black Powder Coat Finish for Long Lasting Protection
Retains the Vehicle's Stock Tie Rod, Steering Knuckle Assemblies, Brakes, and Wheels

*** SELECT OPTIONS TO BUILD AND PRICE ***

Select Gear Ratio *
Select Locker *
Add Gear Oil *

$5,350.00

Qty:

The Currie 44 front crate axle is a direct bolt-in solution that reduces the overall cost by enabling you to retain the complete stock TJ outer knuckle assemblies (brakes, hubs, etc.) and stock wheel bolt pattern.

Product Features:

Currie 44 High-Pinion

Heavy-duty nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity

Axle Tubes

Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock tubes (right)

Forged Inner Knuckles

Currie heavy-duty forged inner knuckles (right) are massively more robust than the stock knuckles (left) and are designed for severe off-road use with tall tires

Geometry

Front axle steering geometry is optimized for lifted vehicles and large tires, featuring 5° of caster and 5° of pinion angle

Performance Axles

Currie Performance 4340 chromoly axles provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability

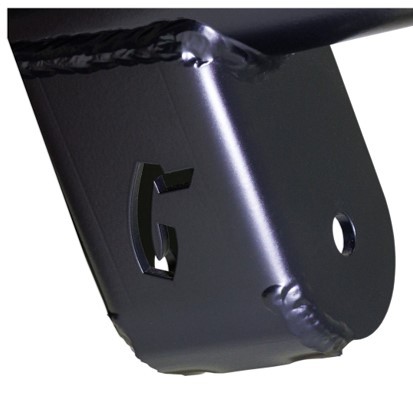

Control Arm Mounts

Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

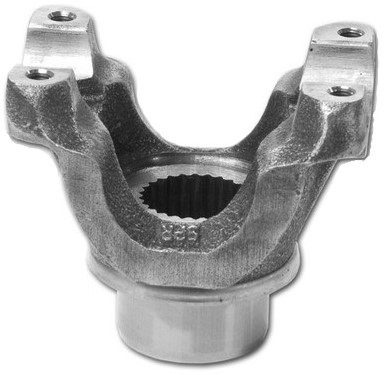

Pinion Yoke

The included 1310 pinion yoke allows the factory driveshaft to be used without modification

Differential Cover

Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 44 looking its best

Notes

Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock TJ/TJ/XJ outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)

Differential Carriers: The center section is designed to use standard Dana 44 carriers (ARB RD117 or Eaton Elocker 19977-010).

Overall Width: Axle width is 60.5 inches (stock TJ width) between wheel mounting surfaces

Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints. Tires larger than 31 inches may require vehicle modification for proper clearance.

Product Features:

Currie 44 High-Pinion

Heavy-duty nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity

Axle Tubes

Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock tubes (right)

Forged Inner Knuckles

Currie heavy-duty forged inner knuckles (right) are massively more robust than the stock knuckles (left) and are designed for severe off-road use with tall tires

Geometry

Front axle steering geometry is optimized for lifted vehicles and large tires, featuring 5° of caster and 5° of pinion angle

Performance Axles

Currie Performance 4340 chromoly axles provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability

Control Arm Mounts

Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

Pinion Yoke

The included 1310 pinion yoke allows the factory driveshaft to be used without modification

Differential Cover

Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 44 looking its best

Notes

Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock TJ/TJ/XJ outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)

Differential Carriers: The center section is designed to use standard Dana 44 carriers (ARB RD117 or Eaton Elocker 19977-010).

Overall Width: Axle width is 60.5 inches (stock TJ width) between wheel mounting surfaces

Products specifications

Vehicle Fitment	1997 thru 2006 Wrangler TJ/LJ and 1984 thru 2001 Cherokee XJ
Center Section	Currie 44 high-pinion nodular-iron center section with thick walls and webbing
Gear Set	Larger/stronger Dana 44 8.8 in. late model JK ring and pinion set
Pinion Yoke	1310 series yoke
Differential Cover	Currie nodular-iron cover with gasketed fill plug with dipstick
Axle Tubes	3 in. diameter, .5 wall DOM tube
Axles	Currie Performance 4340 chromoly 30/27-spline inner/outer axles with 1310 u-joints
End Forgings	Currie heavy-duty forged D44 inner C's with ball joints installed
Ball Joints	Spicer D44 ball joints
Suspension Brackets	Heavy gauge 3/16” laser cut steel brackets
Control Arm Mounts	Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate
Geometry	Optimized for 4” lift kit with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
Width	60.5 inches between wheel mounting surfaces (stock TJ width)
Finish	Satin Black Powder Coat
