Currie 44 - Jeep Cherokee XJ Rear Axle Assembly

Name: Currie 44 - Jeep Cherokee XJ Rear Axle Assembly
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

The Currie 44 axle assembly for the 1984 thru 2001 Cherokee XJ provides a significant strength and performance upgrade over the factory Dana 35 at a price point that won't break the bank. With its substantially reinforced nodular iron center section, heavy-duty 3-inch x .375 axle tubes, and chromoly axles, the Currie 44 is ready for off-road adventure.

Details:

Low-Pinion Massively Reinforced Center Section
3-inch Diameter x .375 Wall DOM Axle Tubes
Larger, Stronger JK Ring and Pinion Gears
Currie Performance 30-Spline Chromoly Axles
Choice of Gear Ratio and Differential Type
Stock 60.50 in. Width and 5 x 4.5 In. Wheel Bolt Pattern
Retains the Vehicle's Factory Brakes and Driveshaft

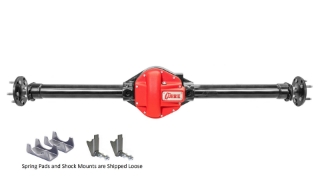

Spring Pads and Shock Mounts are Shipped Loose
Finish is Raw Steel to Accommodate Welding

*** CONFIGURE OPTIONS TO BUILD AND PRICE ***

Select Ratio *
Select Locker *
Add Gear Oil *

$4,650.00

Qty:

The Currie 44 low-pinion rear axle for 1984 thru 2001 Cherokee XJ is shipped with the spring pads and shock mounts loose so that pinion angle and shock locations can be tuned to the vehicle. The vehicle's factory driveshaft and brakes can be retained and installed on the new axle.

Currie 44 Axle Features

		Currie 44 low-pinion nodular iron center section features 14 lbs of additional reinforcement, with thicker walls and webbing to deliver superior strength and rigidity

		3-inch diameter x .375 wall tubes are greater than 2x the strength of the factory 35/44 2.5 diameter x .250 axle tubes

		Currie Performance 30-spline heat-treated chromoly axles provide increased strength and durability over the stock axles

		Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

		Axles feature the factory 5x4.5 wheel bolt pattern so that you can keep those nice wheels

Notes

Wheel Studs: Includes 1/2 inch wheel studs

Brackets: Spring pads and shock mounts are shipped loose (not welded) so that pinion angle and shock locations can be tuned to the vehicle

Axle Width: TJ/LJ 60.250 inches between wheel mounting surfaces

Currie 44 Axle Features

		Currie 44 low-pinion nodular iron center section features 14 lbs of additional reinforcement, with thicker walls and webbing to deliver superior strength and rigidity

		3-inch diameter x .375 wall tubes are greater than 2x the strength of the factory 35/44 2.5 diameter x .250 axle tubes

		Currie Performance 30-spline heat-treated chromoly axles provide increased strength and durability over the stock axles

		Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

		Axles feature the factory 5x4.5 wheel bolt pattern so that you can keep those nice wheels

Notes

Wheel Studs: Includes 1/2 inch wheel studs

Brackets: Spring pads and shock mounts are shipped loose (not welded) so that pinion angle and shock locations can be tuned to the vehicle

Axle Width: TJ/LJ 60.250 inches between wheel mounting surfaces

Products specifications

Vehicle Fitment	1984 thru 2001 Cherokee XJ
Center Section	Currie 44 low-pinion nodular-iron center section with thicker walls and webbing
Gear Set	Larger/stronger JK 44 8.8” late model ring and pinion set
Pinion Yoke	Stock 1310 u-joint
Differential Cover	Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes	3 inch diameter, .375 wall DOM tube
Axle Bearings	Set 10 tapered roller bearing
Axles	Currie Performance semi-floating 30-spline 4340 chromoly axles
Brakes	Not included, reuses the stock rear brakes
Suspension Brackets	Spring pads and shock mounts shipped loose (not installed)
Width	60.50 inches between wheel mounting surfaces (stock XJ)
Wheel Bolt Pattern	5 on 4.5” with ½” studs installed
