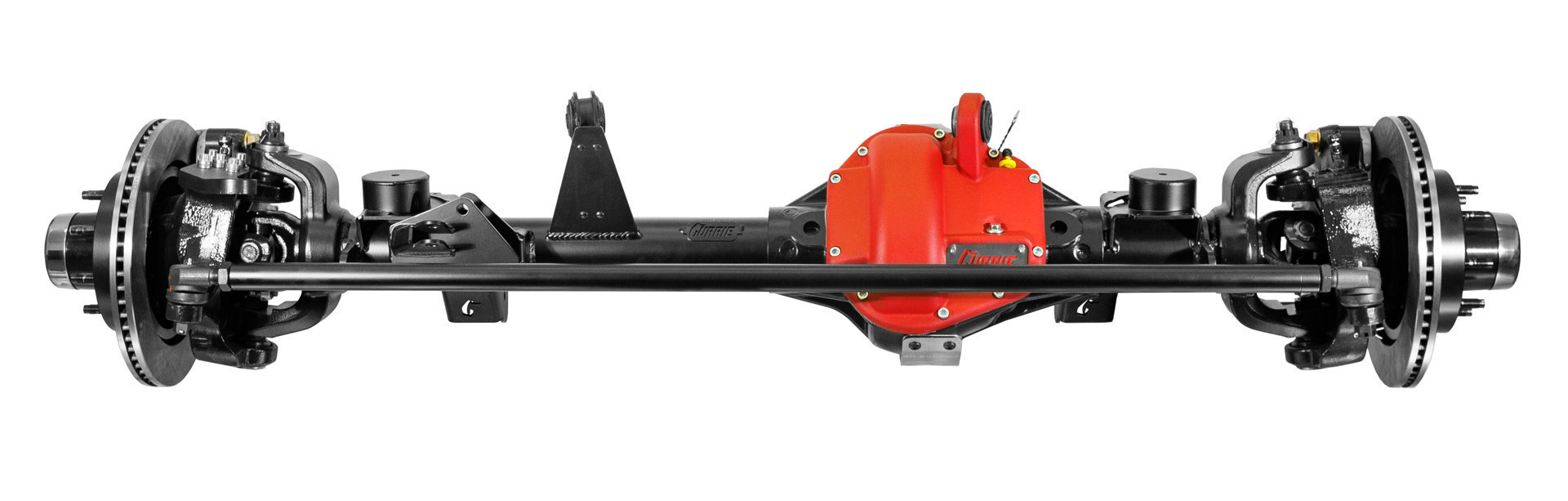

Currie Extreme 60 - Fits 2007-2018 Jeep Wrangler JK - Front Axle - 5.38 Gear Ratio - ARB Air Locker - CE-KF6503A53

The Currie Extreme 60 front axle for 2007 thru 2018 JK/JKU, is designed for severe off-road use with tires up to 42 inches and V8 horsepower. The Extreme 60 front features our massively reinforced rotated 60-series high-clearance center section, 3.5-inch tubes, 35-spline chromoly axles, and 1-ton inner knuckles and outer steering assemblies that are fitted with massive brakes and 8-lug hubs. If you seek out the most challenging routes and toughest obstacles to conquer, the Extreme 60 axle assembly is a natural choice. See below for the full details.


Details:

  • 70-Inch Width Provides Clearance for Large Tires
  • 5.38 Gear Ratio
  • ARB Air Locker
  • High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over
  • 3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength
  • Hardened Steel Rock Slider Skid Plate Glides Over Rocks
  • 1-Ton Forged Inner Knuckles and Nodular Iron Outer Knuckles with 8-Lug Hubs

    Deliver Maximum Strength for Hard Wheeling with Large Tires

  • Currie Chromoly 35-Spline Inner and Outer Axles Provide End-to-End Strength
  • Big 14.25-Inch Vented Rotors and Master Cylinder-Matched Dual-Piston Calipers

    Deliver Industry Leading Stopping Power with Factory Brake Pedal Feel

  • Chromoly Tie Rod with 1-Ton Rod Ends is Designed for Off-Road Abuse
  • Currie Rock-Proof Nodular Iron Differential Cover
  • Currie Heavy-Gauge Laser Cut Brackets
  • Upgraded 1350 Pinion Yoke
  • Satin Black Powder Coat Finish for Long Lasting Protection
  • Fully Assembled and Ready to Install

SKU: CE-KF6503A53
*
$10,100.00

The Extreme 60 high-pinion axle for 2007 thru 2018 JK/JKU is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint



Extreme 60 High-Pinion Features



  Designed and optimized using computer simulation, the Extrem 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  The front high-pinion radius bottom center section with a replaceable skid plate delivers unmatched ground clearance and improves obstacle slide-over by presenting a smooth curve

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

  The included heavy-duty tie rod features a 1.375 in. OD x .375 wall heat-treated chromoly tube and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

  Currie Extreme forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

  14.250 in. 8-lug vented rotors, and OE Gladiator truck dual-piston calipers provide the power required to stop your JK without the cost or availability issues of exotic brakes

  Warn®premium manual locking hubs are the industry standard for durability and reliability

  Currie rock-proof nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Powder Coat   Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best





Notes

ABS Sensors: Axles do not include ABS sensors; the factory sensors from the stock axles must be retained and installed on the Extreme 60 front and rear axle assemblies

Computer Programming: A programmer is required to reset the gear ratio and tire height settings in the vehicle's computer for the proper function of the vehicle's stability control and transmission shift points when larger than stock tires are installed

Driveshaft: A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10113216 is recommended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axle width is 70 inches (+4.6 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Steering Stabilizer: The Extreme 60 Ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01



The Extreme 60 high-pinion axle for 2007 thru 2018 JK/JKU is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicles factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint



Extreme 60 High-Pinion Features



  Designed and optimized using computer simulation, the Extrem 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  The front high-pinion radius bottom center section with a replaceable skid plate delivers unmatched ground clearance and improves obstacle slide-over by presenting a smooth curve

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

  The included heavy-duty tie rod features a 1.375 in. OD x .375 wall heat-treated chromoly tube and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

  Currie Extreme forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

  14.250 in. 8-lug vented rotors, and OE Gladiator truck dual-piston calipers provide the power required to stop your JK without the cost or availability issues of exotic brakes

  Warn®premium manual locking hubs are the industry standard for durability and reliability

  Currie rock-proof nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Powder Coat   Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best





Notes

ABS Sensors: Axles do not include ABS sensors; the factory sensors from the stock axles must be retained and installed on the Extreme 60 front and rear axle assemblies

Computer Programming: A programmer is required to reset the gear ratio and tire height settings in the vehicle's computer for the proper function of the vehicle's stability control and transmission shift points when larger than stock tires are installed

Driveshaft: A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10113216 is recommended (verify manufacturer vehicle fitment)

Wheel and Tire Size: 17-inch or larger wheels are required for proper clearance of the brake calipers. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axle width is 70 inches (+4.6 inches over stock) between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Steering Stabilizer: The Extreme 60 Ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01



Products specifications
Vehicle Fitment 2007 thru 2018 Jeep Wrangler JK/JKU
Housing Extreme 60 Nodular Iron High-Clearance Center Section with Rotated Cover, and Integrated Skid Plate
Pinion Bearing Large diameter front pinion bearing matched to rear bearing
Pinion Oiling High volume flow-thru recirculating oil system
Gear Set Dana 60™ reverse rotation thick gear sets
Differential Carrier Only high speed differential carriers (designed for low numerical gears) are used, enabling the use of stronger thick ring gears for all gear ratios
Pinion Yoke 1350 u-joint
Skid Plate AR400 hardened steel skid plate
Differential Cover Currie nodular-iron cover, Red
Axle Tubes 3 1/2 inch diameter, .375 wall DOM tube
Axles Currie Performance 35-spline (1.5” diameter) 4340 Chromoly inner and outer axle shafts with 1480 u-joints
End Forgings Currie 1-ton heavy-duty forged steel inner C’s
Steering Knuckles Currie 1-ton nodular iron steering knuckles machined and keyed for high-steer arms
Unit Bearings 1-ton unit bearings with tone rings installed for ABS and ESP retention
Hubs Warn Premium locking 35-spline hubs
Brake Rotors 14.250 in. 8-lug vented rotors
Brake Calipers Jeep Gladiator JT OE Dual-Piston Calipers
Tie Rod 1-ton 1.357 in. OD x .375 wall heat treated chromoly tube with forged tie rod ends
Suspension Brackets Heavy gauge 3/16” steel mounting brackets
Geometry Optimized for stock height and lifted vehicles with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
Track Bar Mount Integrated raised track bar and ram-assist mount setup for PSC 8-inch travel ram
Width 70” wide (between wheel mounting surfaces)
Wheel Bolt Pattern 8-lug (8 on 6 ½") with 9/16 studs
Finish Black satin powder coat
