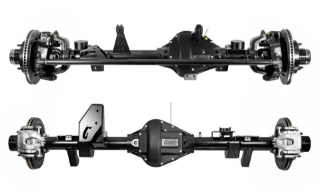

Currie Extreme 60 - Jeep Gladiator Axle Assemblies

Designed and optimized using computer simulation, the Extreme 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

The radius bottom center section with replaceable AR400 skid plate delivers unmatched ground clearance and improved obstacle slide-over

Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

The upgraded 1350 pinion yoke provides increased strength and reliability over the failure-prone factory CV Joint

The included heavy-duty tie rod features a 1.375 OD x .375 wall heat-treated chromoly tube, and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

Massive forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

Complete 1-ton outer steering assemblies deliver massive strength, while 14.25-inch diameter vented rotors and Jeep Gladiator dual-piston calipers provide the increased brake capacity required for stopping big tires

Warn® premium manual locking hubs are the industry standard for durability and reliability

Rock-proof Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best

Designed and optimized using computer simulation, the Extreme 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

Gear diameter equals strength - the Extreme 60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.66" gear (left)

Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

Currie 40-spline full-floating chromoly axles are the largest in the industry and provide 1.5x the strength of 35-spline chromoly axles

Desert race-inspired heat-treated Chromoly spindles with billet steel full-floating hubs carry the vehicle's weight, eliminating the influence of side loading and impact shock on axle durability. Modified OEM backing plates and parking brake assemblies provide reliable operation with broad availability of serviceable wear items

13.750-inch vented rotors and OE Jeep Gladiator calipers provide the stopping power with factory pedal feel, while the 8-lug bolt pattern improves reliably with large, heavy tires

The upgraded 1350 pinion yoke provides increased strength and reliability over the failure-prone factory CV Joint

Currie heavy-duty laser cut brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

Currie rock-proof nodular iron cover protects expensive internals and adds structural support to the housing's face flange

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best
