Currie HD60 - Ford Bronco Rear Axle Assembly

Name: Currie HD60 - Ford Bronco Rear Axle Assembly
Brand: Currie
Price: 7250.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Upgrade your 2021 and newer Ford Bronco with the Currie HD60 rear axle assembly. Built for strength, durability, and off-road prowess, the HD60 axle features our heavy-duty 60-series center section, robust 3.5-inch diameter axle tubes, locking differential, and upgraded 35-spline chromoly axles. Moreover, the HD60 keeps your factory Ford OE rear brake assembles and wheel bolt pattern intact, so that you can hold onto those sleek wheels.

Details:

Bolt in Fit for 2021-Up Ford Bronco
Heavy-Duty 60-Series Low-Pinion Center Section
3.5 x .375-inch DOM Axle Tubes
35-Spline Chromoly Axles
Choice of Gear Ratio
Choice of Locking Differential
Currie Heavy-Gauge OE Fitment Brackets
Currie Rock-Proof Nodular Iron Differential Cover
Satin Black Powder Coat for Long Lasting Protection
Retains the Vehicles Factory Rear Brake Components and Wheel Bolt Pattern
See Notes Below for Additional Details

Select Gear Ratio *
Select Locker *

$7,250.00

Qty:

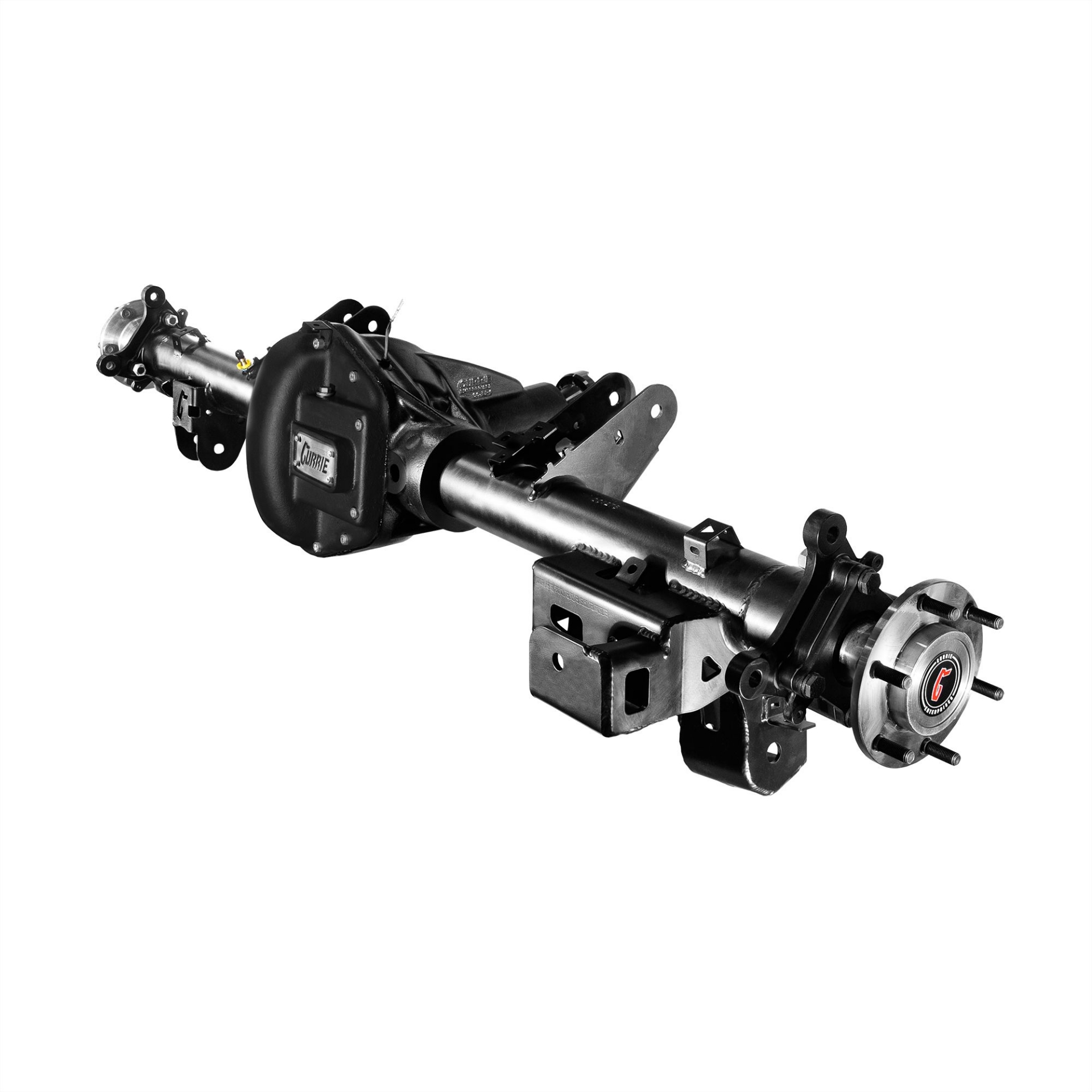

The Currie HD60 low-pinion rear axle for the 2021 and newer Ford Bronco is a direct bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory brake assemblies will be retained and installed on the new HD60 axle.

Product Features:

Currie HD60

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

Axle Tubes

Large 3.5 in. diameter .375 wall axle tubes (left) are more than 2x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

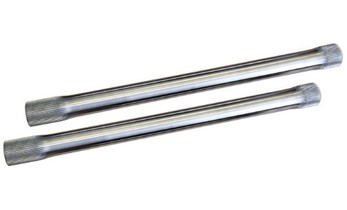

Chromoly Axles

35-spline chromoly full-floating axles (right) are 1.5x the strength of OE factory axles

Companion Flange

Factory-style companion flange provides compatibility with the factory CV style driveshaft

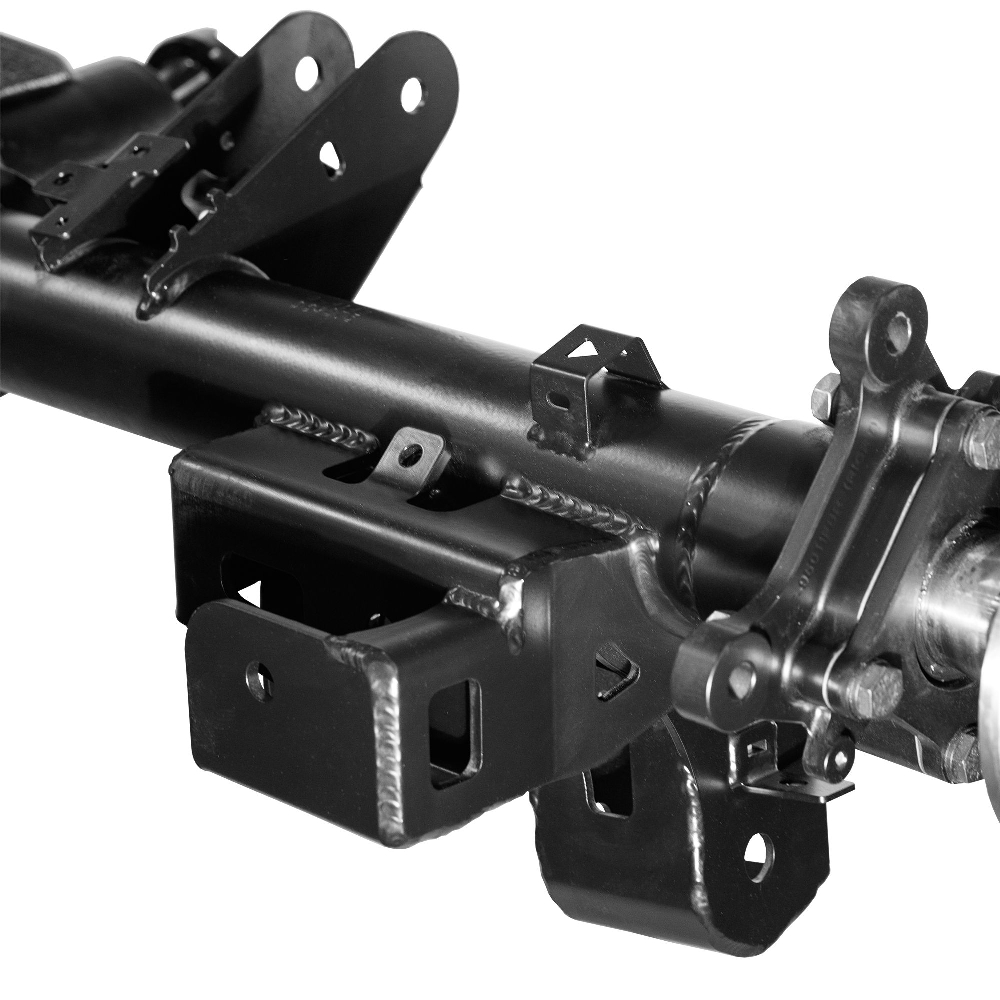

Laser Cut Brackets

Currie heavy-duty laser cut brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

Iron Cover

Currie rock-proof nodular iron cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie HD60 looking its best

Notes

ABS Sensors: Does not include ABS sensors; the factory sensors from the stock axle must be retained and installed on the Currie Axle

Driveshaft: The vehicle's factory driveshaft will be retained and reused with this Currie axle

Brake Components: Retains the vehicle's factory rear brake components, reuse the stock rotors and calipers from the vehicle

Wheel Bearings: Retains the vehicle's factory wheel bearings after removal of the factory axle from the bearing

Overall Width: Axle is built to match the factory width between wheel mounting surfaces
