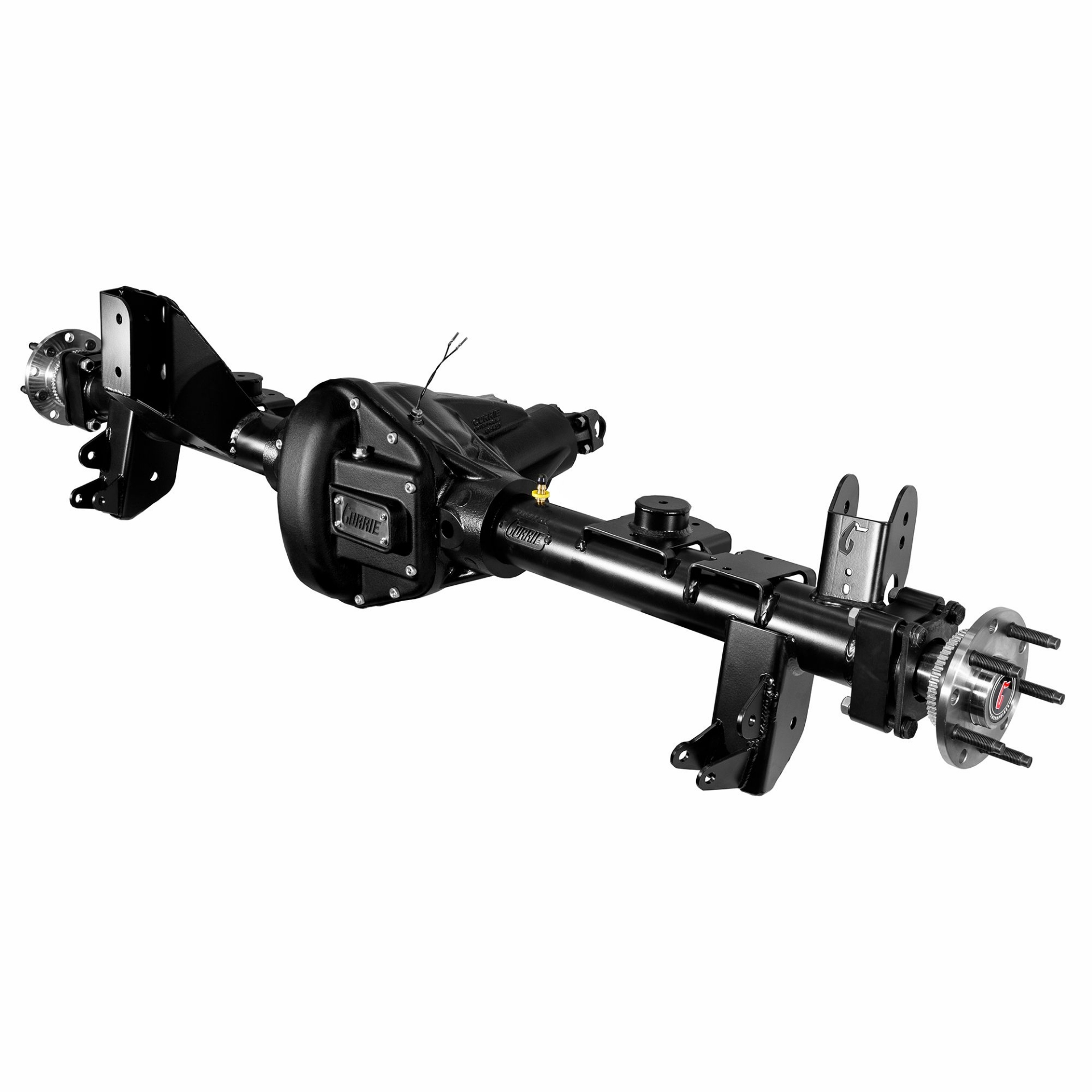

Currie HD60 - Jeep Wrangler JL Rear Axle Assembly

Name: Currie HD60 - Jeep Wrangler JL Rear Axle Assembly
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Recommended Gearing By Tire Size
Engine	35" Tire	37" Tire	39" Tire*	40" Tire*
Gas	4.88 Gears	5.13 Gears	5.38 Gears	5.38 Gears
Diesel	4.10 Gears	4.56 Gears	4.56 Gears	4.88 Gears
Gear ratio suggestions are based on mixed highway and off-road usage. Please contact a Currie specialist at (714) 528-6957 if you have any questions. *Currie does not recommend using 39" and larger tires with the factory front unit bearings or with rear semi-float axles.

The Currie HD60 rear axle assembly for the 2018 and newer Jeep Wrangler JL is the perfect upgrade for off-road enthusiasts or overlanders seeking enhanced strength and durability. The HD60 rear features our massively reinforced 60-series center section, large 3.5-inch diameter axle tubes, and 40-spline axles that greatly upgrade strength and reliability beyond the stock Wrangle rear axle assembly. Additionally, the HD60 retains the powerful factory rear brakes and the factory wheel bolt pattern so that you can keep those nice wheels.

Details:

68 in. JL Rubicon Width (+1.5 in. Over Non-Rubicon Models)
Heavy-Duty 60-Series Low-Pinion Center Section Features Thicker Walls and Webbing for Unmatched Strength
3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength
40-Spline Chromoly Axles are More than 2x the Strength of Stock Axles, and 1.5x Stronger than the Competition's 35-Spline Axles
Currie Heavy-Gauge OE Fitment Brackets
Choice of Selectable Locker and Gear Ratio
Currie Rock-Proof Nodular Iron Differential Cover
Upgraded 1350 Pinion Yoke
Satin Black Powder Coat for Long Lasting Protection
Retains Stock 5x5 Wheel Bolt Pattern
Retains the Vehicles Factory Rear Brake Components
See notes below for additional details

Select Vehicle Model *
Select Ratio *
Select Locker *
Add Gear Oil *

$7,249.00

Qty:

The Currie HD60 low-pinion rear axle for the 2018 and newer Wrangler JL is a direct bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory brakes will be retained and installed on the new HD60 axle. The factory driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350-series u-joint.

Product Features:

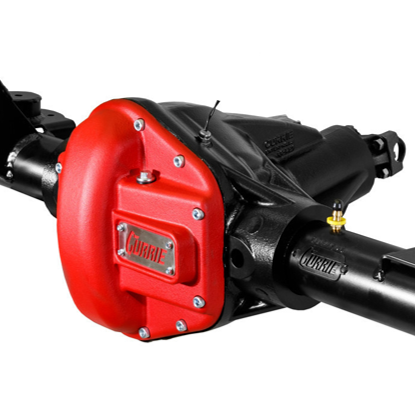

Currie HD60

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

60-Series Gear

Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.66" gear (left)

Axle Tubes

Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

Chromoly Axles

40-spline chromoly semi-floating axles (right) are 1.5x the strength of 35-spline axles and are more than 2.5x the strength of the stock JT axle (left)

Factory Bolt Pattern

Axles feature the factory 5x5 wheel bolt pattern so that you can keep those nice wheels

Pinion Yoke

The upgraded 1350 pinion yoke provides increased strength and reliability over the failure-prone factory CV Joint

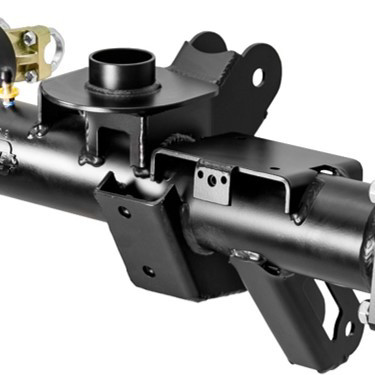

Laser Cut Brackets

Currie heavy-duty laser cut brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

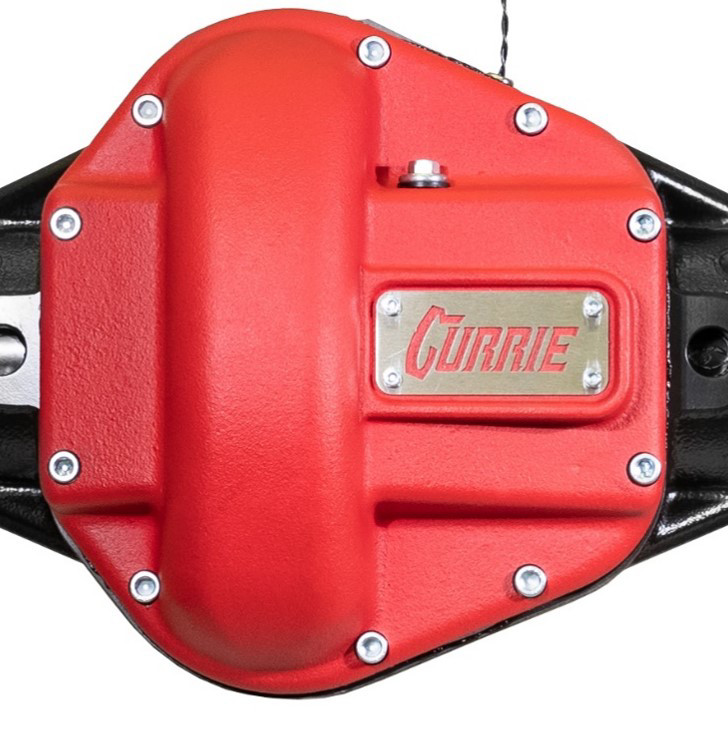

Iron Cover

Currie rock-proof nodular iron cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie HD60 looking its best

Notes

ABS Sensors - The stock axle must be retained and installed on the Currie housing

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recommended (verify manufacturer vehicle fitment)

Brake Components - Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock rotors and calipers from the vehicle

Wheel and Tire Size - 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39-inches for semi-floating axles

Overall Width - Axle width is 68-inches (JL Rubicon stock) between wheel mounting surfaces

Product Features:

Currie HD60

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

60-Series Gear

Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.66" gear (left)

Axle Tubes

Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

Chromoly Axles

40-spline chromoly semi-floating axles (right) are 1.5x the strength of 35-spline axles and are more than 2.5x the strength of the stock JT axle (left)

Factory Bolt Pattern

Axles feature the factory 5x5 wheel bolt pattern so that you can keep those nice wheels

Pinion Yoke

The upgraded 1350 pinion yoke provides increased strength and reliability over the failure-prone factory CV Joint

Laser Cut Brackets

Currie heavy-duty laser cut brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

Iron Cover

Currie rock-proof nodular iron cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie HD60 looking its best

Notes

ABS Sensors - The stock axle must be retained and installed on the Currie housing

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recommended (verify manufacturer vehicle fitment)

Brake Components - Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock rotors and calipers from the vehicle

Wheel and Tire Size - 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39-inches for semi-floating axles

Overall Width - Axle width is 68-inches (JL Rubicon stock) between wheel mounting surfaces

Products specifications

Vehicle Fitment	2018 and newer Jeep Wrangler JL Sport/Sahara and Rubicon
Center Section	Currie LP60 nodular Iron low-pinion center section
Gear Set	Standard Dana 60™ low-pinion
Pinion Yoke	1350 u-joint
Differential Cover	Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes	3.5 in. diameter x .375 in. wall DOM tube
Axle Bearings	Set 80 tapered roller bearing
Axles	Currie Performance semi-floating, 40-spline (1.7” diameter) axles with tone rings for ABS/ESP retention
Brake Rotors	Not included, reuses the stock JL Sport/Sahara or Rubicon rear rotors
Brake Calipers	Not included, reuses the stock JL Sport/Sahara or Rubicon calipers
Suspension Brackets	Heavy gauge 3/16” steel mounting brackets
Geometry	Optimized for stock height up to 4” of lift
Width	68-inches between wheel mounting surfaces (stock JL Rubicon width)
Wheel Bolt Pattern	5 on 5 inch with 14 MM studs (standard Wrangler JL pattern)
Oil Capacity	3.0 quarts of 75W-140 synthetic gear oil (API GL-5 Rated)
Finish	Black satin powder coat
