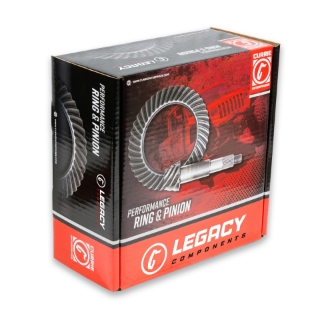

Currie Legacy - Dana 60 Ring and Pinion Sets

Name: Currie Legacy - Dana 60 Ring and Pinion Sets
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Currie Legacy Gears for Dana 60 axles are forged from 8620 alloy steel for the greatest strength, precision machined for exact factory fit and quiet operation. All Currie Legacy gears are CNC lapped for reduced friction and provide quiet operation, with additional attention to detail of hand dressing each gear to eliminate any possible burrs on gear tooth edges to improve the break-in process.

Details:

Gear sets available for:

Standard Rotation Gears for Low-Pinion Applications

Reverse Rotation Gears for High-Pinion Applications

Available Ratios from 4.56 thru 5.38
Forged 8620 Alloy Material for Optimal Strength
CNC Lapped for Quite Operation
Hand Dressed to Eliminate Burrs

Select Axle Location *
Select Front Gear Set *
Select Rear Gear Set *
Select Gear Sets *
Add Gear Oil *
Add Gear Oil *

$349.99

Qty:

Dana 60 High Pinion Front or Rear
Material	8620 alloy steel
Ring Gear Diameter	9.7"
Carrier Break	4.11 and Down (Thick Gear)
Gear Rotation	Reverse
Ring Gear Bolts	1/2"-20
Pinion Spline	29
Pinion Thread	7/8"-14
Pinion Nut Socket	1 5/16" Socket
Dana 60 Rear
Material	8620 alloy steel
Ring Gear Diameter	9.7"
Carrier Break	4.56 and Up
Gear Rotation	Standard
Ring Gear Bolts	1/2"-20
Pinion Spline	29
Pinion Thread	7/8"-14
Pinion Nut Socket	1 5/16" Socket
