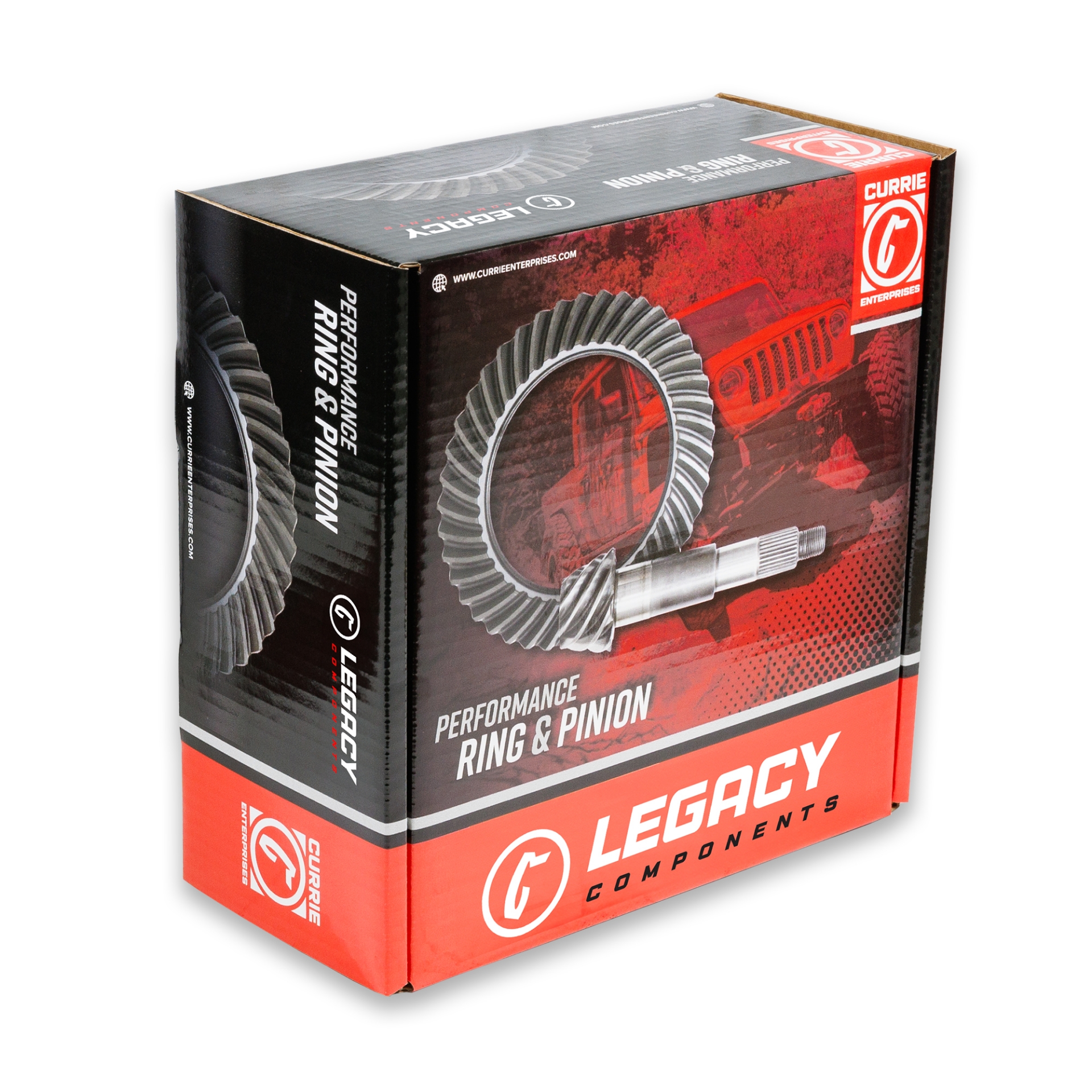

Currie Legacy - 44 Gear Sets

Name: Currie Legacy - 44 Gear Sets
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Currie Legacy 44 Gears are forged from 8620 alloy steel for the greatest strength, precision machined for exact factory fit and quiet operation. All Currie Legacy gears are CNC lapped for reduced friction and provide quiet operation, with additional attention to detail of hand dressing each gear to eliminate any possible burrs on gear tooth edges to improve the break-in process.

Details:

Fitment 2007-2018 Jeep JK Wrangler Rubicon
Currie or Dana 44 Front/Rear
Available Ratios from 4.56 thru 5.13
Forged 8620 Alloy Material for Optimal Strength
CNC Lapped for Quiet Operation
Hand Dressed to Eliminate Burrs

Select Vehicle Model *
Select Axle Location *
Select Front Gear Set *
Select Rear Gear Set *
Select Gear Sets *
Add Gear Oil *
Add Gear Oil *

$249.99

Qty:

Dana 44 Front
Material	8620 Alloy Steel
Ring Gear Diameter	8.5"
Carrier Break	3.73 and Down
Gear Rotation	Reverse
Ring Gear Bolts	Dual Pattern 7/16"-20 and 1/2"-20
Pinion Spline	24
Pinion Thread	7/8"-20
Pinion Nut Socket	1-1/4"
Dana 44 Rear
Material	8620 Alloy Steel
Ring Gear Diameter	8.8"
Carrier Break	3.73 and Down
Gear Rotation	Standard
Ring Gear Bolts	Dual Pattern 7/16"-20 and 1/2"-20
Pinion Spline	24
Pinion Thread	7/8"-14
Pinion Nut Socket	1-5/16"

Product tags

jk ring and pinion (4)
,
dana 44 ring and pinion (4)
,
dana 44 gears (4)
,
dana 44 gear set (4)
,
currie legacy (5)
,
legacy gear (5)
,
legacy components (5)
,
jk rear gears (2)
,
jk 4.56 (2)
,
jk 4.88 (2)
,
jk 5.13 (2)
,
jk 5.38 (2)
,
dana 44 4.56 (4)
,
dana 44 4.88 (4)
,
dana 44 5.13 (4)
,
dana 44 5.38 (4)
,
rp44jk-456 (2)
,
rp44jk-488 (2)
,
rp44jk-513 (2)
,
rp44jk-538 (2)
,
811337032226 (2)
,
811337032233 (2)
,
811337032240 (2)
,
811337032257 (2)
,
rp44jkh-513 (2)
,
rp44jkh-538 (2)
,
rp44jkh-488 (2)
,
rp44jkh-456 (2)
,
811337032264 (2)
,
811337032271 (2)
,
811337032288 (2)
,
811337032295 (2)
,
rp30j-456 (3)
,
rp30j-488 (3)
,
rp30j-513 (3)
,
rp30j-538 (3)
,
811337032189 (3)
,
811337032196 (3)
,
811337032202 (3)
,
811337032219 (3)
,
dana 30 gears (2)
,
dana 30 ring and pinion (3)
,
dana 30 4.88 (3)
,
dana 30 4.56 (3)
,
dana 30 5.13 (3)
,
dana 30 5.38 (3)

Related Products

Currie 4x4 Performance Gear Oil

$17.00

High-performance full-synthetic 75W-140, GL-5 gear oil designed specifically for the requirements of 4x4 Jeeps and trucks. Currie 4x4 Performance Gear Oil provides maximum shear stability and extreme pressure protection with a superior inhibitor package that protects against rust, corrosion and foaming.

Details:

100% Synthetic Formula Provides Superior Shock, Load, and Wear Protection
Contains an Effective Inhibitor Package that Protects Against Rust and Corrosion
Extreme Pressure Chemistry Delivers 4 Times the Film Strength of Conventional Gear Oils
Reduces Operating Temperatures and Delivers Improved Efficiency
SAE 75W-140 API GL-5 Rated

Customers Also Purchased

Currie "Corona" T-Shirt

$20.00 $10.00

Details:

Men's White Short Sleeve Crew Neck
Solid Color
Front Logo Graphic Print

Currie "Braid" Womens V-Neck Tank Top

$15.00

Details:

Women's Lilac Tank Top
Scoop Neckline
White Graphic
Logo Graphic Print Front

Currie "Performance" T-Shirt

$20.00

Details:

Men's Black Short Sleeve Crew Neck
Solid Color
Logo Graphic Print Front and Back

Currie "Emblem" Hoodie

$25.00

Details:

Men's Black Hooded Pullover Sweatshirt
Adjustable Drawstring Hood
Cuffed Long Sleeves
Kangaroo Pouch Pocket
Logo Graphic Print Front and Back

Popular tags

Recommended Gearing By Tire Size
Year	33" Tire	35" Tire	37" Tire	37"+ Tire
07-11	4.56 Gears	5.13 Gears	5.38 Gears	N/A
12-18	4.56 Gears	4.88 Gears	5.13 Gears	5.38 Gears
Gear ratio suggestions are based on mixed highway and off-road usage. Please contact a Currie representative at (714) 528-6957 if you have any questions.
