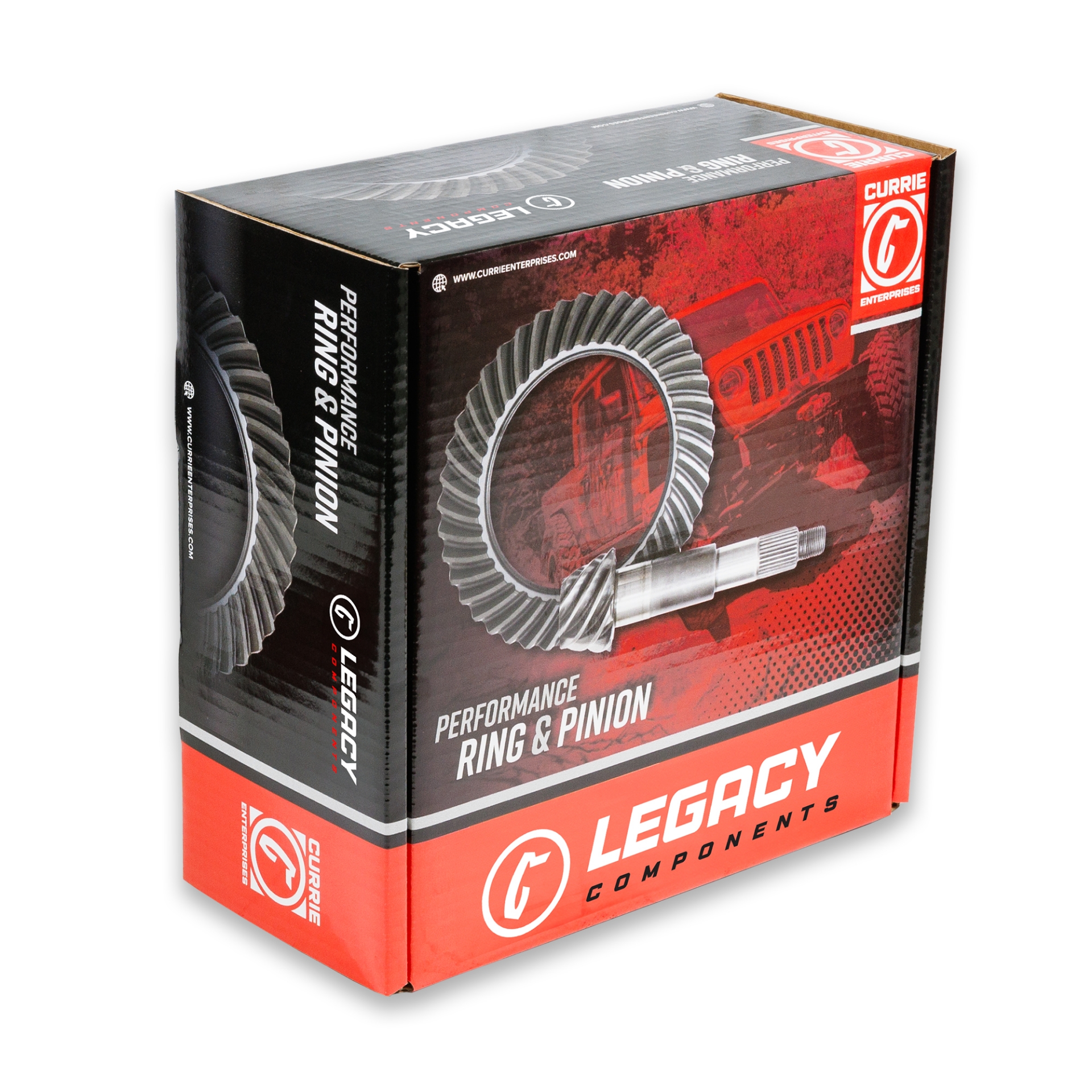

Currie Legacy - Gladiator JT Replacement Gears

Name: Currie Legacy - Gladiator JT Replacement Gears
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Currie Legacy Gears for the 2020 and newer Jeep Gladiator JT are forged from 8620 alloy steel for the greatest strength, precision machined for exact factory fit and quiet operation. All Currie Legacy gears are CNC lapped for reduced friction and provide quiet operation, with additional attention to detail of hand dressing each gear to eliminate any possible burrs on gear tooth edges to improve the break-in process.

Details:

Fitment 2020-Current Jeep Gladiator JT All Models

Equipped with Dana 44 Front / Dana 44 Rear AdvanTEK^® Axles
Available Ratios from 4.56 thru 5.13
Forged 8620 Alloy Material for Optimal Strength
CNC Lapped for Quiet Operation
Hand Dressed to Eliminate Burrs

Select Axle Location *
Select Front Gear Set *
Select Rear Gear Set *
Select Gear Sets *
Add Gear Oil *
Add Gear Oil *

$348.99

Qty:

Dana 44 AdvanTEK M210 Front
Material	8620 Alloy Steel
Ring Gear Diameter	210 mm
Carrier Break	3.73 and Down
Gear Rotation	Reverse
Ring Gear Bolts	M12 x 1.25
Pinion Spline	28
Pinion Thread	M24 x 2.0
Pinion Nut Socket	32 mm Socket (1-1/4" Socket is a VERY tight fit)
Dana 44 AdvanTEK M220 Rear
Material	8620 Alloy Steel
Ring Gear Diameter	220 mm
Carrier Break	3.73 and Down
Gear Rotation	Standard
Ring Gear Bolts	M12 x 1.25
Pinion Spline	28
Pinion Thread	M24 x 2.0
Pinion Nut Socket	32 mm Socket (1-1/4" Socket is a VERY tight fit)
