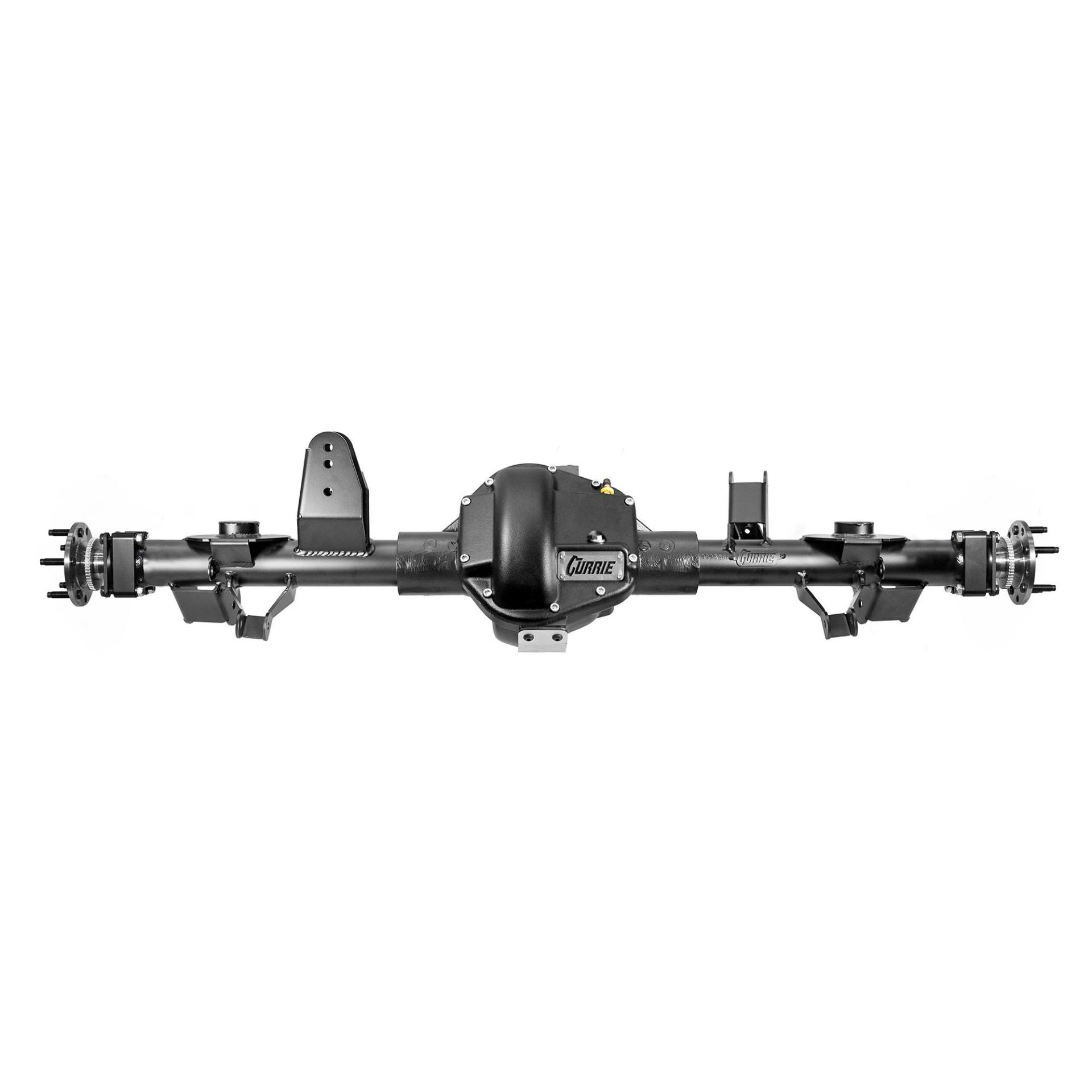

Currie 60 - Jeep TJ/LJ - JK Hybrid Rear Axle Assembly

Name: Currie 60 - Jeep TJ/LJ - JK Hybrid Rear Axle Assembly
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Currie HD60 Hybrid axle assembly for the 1997-2006 Jeep TJ/LJ incorporates the unmatched strength of the Currie HD60 casting with an additional 5 inches of width, JK housing ends, and TJ bracketry. The high-pinion design and exclusive rotated center section of the HD60 provide superior driveshaft clearance and obstacle slide-over for enhanced performance. If you enjoy tackling challenging routes and formidable obstacles, the Currie HD60 axle is ideal.

Details:

Complete Currie HD60 High-Pinion Rear Axle
Currie TJ Brackets Installed
JK 65.375 in. Width (+4.9 in.)
JK 5 x 5 Wheel Bolt Pattern
High-Pinion Design Raises the Driveshaft by 2-Inches to

Reduces Driveline Angle and Improve Clearance
Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles with Ease
Currie 35-spline Semi-Float Axles
3 in. Diameter x .5 in. Wall DOM Axle Tubes
Choice of Gear Ratio, Axle Spline and Locker
Satin Black Powder Coat Finish For Long Lasting Protection
Requires Additional Components - See Notes Below

*** CONFIGURE OPTIONS TO BUILD AND PRICE ***

Select Gear Ratio *
Select Locker *
Add Gear Oil *

$5,550.00

Qty:

The HD60 high-pinion axle for the Jeep Wrangler TJ is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350 series u-joint.

Product Features:

Currie HD60 High-Pinion

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

Rock Slider

Integrated AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

Axle Tubes

3-inch diameter x .375 wall tubes are greater than 2x the strength of the factory 35/44 2.5 diameter x .250 axle tubes

Larger Pinion Bearing

Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

Pinion Oiling

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

TJ Brackets

Currie heavy-duty TJ brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

JK Housing Ends

JK Set80 housing end with 5 x 5 wheel bolt pattern accepts standard or aftermarket JK brake components for a significantly increased stopping power over factory TJ brakes

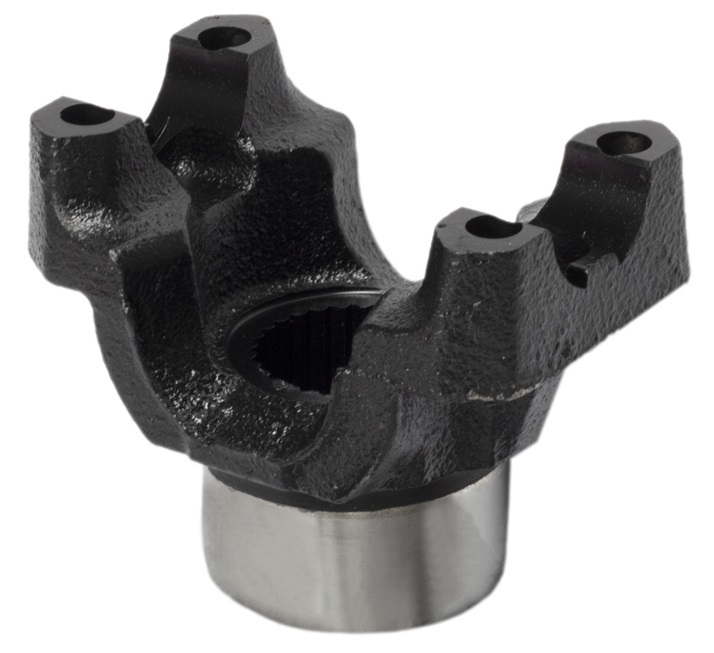

Pinion Yoke

The upgraded 1350 pinion yoke provides increased strength and reliability over the factory 1310 yoke

Iron Cover

Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best

Notes:

Driveshaft: The driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350 series u-joint

Brakes: Compatible with stock JK or aftermarket JK-compatible brake assemblies (Not included)

Sway Bar: Requires the use of an aftermarket sway bar such as the RockJock Antirock or equivalent (Not included)

Wheel Bolt Pattern: The WBP is JK 5 x 5

Product Features:

Currie HD60 High-Pinion

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

Rock Slider

Integrated AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

Axle Tubes

3-inch diameter x .375 wall tubes are greater than 2x the strength of the factory 35/44 2.5 diameter x .250 axle tubes

Larger Pinion Bearing

Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

Pinion Oiling

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

TJ Brackets

Currie heavy-duty TJ brackets provide increased strength and maintain compatibility with stock and aftermarket suspension components

JK Housing Ends

JK Set80 housing end with 5 x 5 wheel bolt pattern accepts standard or aftermarket JK brake components for a significantly increased stopping power over factory TJ brakes

Pinion Yoke

The upgraded 1350 pinion yoke provides increased strength and reliability over the factory 1310 yoke

Iron Cover

Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best

Notes:

Driveshaft: The driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350 series u-joint

Brakes: Compatible with stock JK or aftermarket JK-compatible brake assemblies (Not included)

Sway Bar: Requires the use of an aftermarket sway bar such as the RockJock Antirock or equivalent (Not included)

Wheel Bolt Pattern: The WBP is JK 5 x 5

Products specifications

Vehicle Fitment	1997 thru 2006 Wrangler TJ/LJ
Center Section	Currie 60 nodular Iron high-pinion radius bottom center section with thicker walls and webbing
Pinion Bearing	Large diameter front pinion bearing matched to rear bearing
Pinion Oiling	High volume flow-thru recirculating oil system
Gear Set	Standard Dana 60™, compatible with super 60 reverse cut gears
Pinion Yoke	1350 u-joint
Skid Plate	AR400 hardened steel skid plate
Differential Cover	Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes	3 in. diameter, .5 wall DOM tube
Axle Bearings	Set 20 tapered roller bearing
Axles	Currie Performance semi-floating, 35-spline (1.5” diameter) 4340 chromoly axles
Suspension Brackets	Heavy gauge 3/16” steel mounting brackets with multiple mounting locations that enable the suspension geometry to be tuned
Geometry	Optimized for 4” lift kits with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
Wheel Bolt Pattern	5-lug on 4.5-inch single pattern, .5-inch press-in studs
Width	60.50 inch wide (stock TJ width)
Finish	Black satin powder coat
