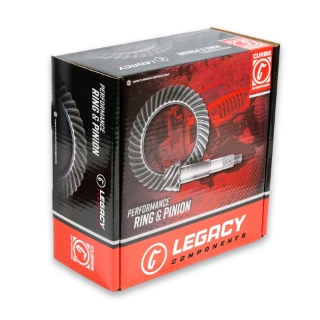

Currie Legacy - JL Replacement Gears

Name: Currie Legacy - JL Replacement Gears
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Currie Legacy Gears for the 2018 and newer Jeep Wrangler JL are forged from 8620 alloy steel for the greatest strength, precision machined for exact factory fit and quiet operation. All Currie Legacy gears are CNC lapped for reduced friction and provide quiet operation, with additional attention to detail of hand dressing each gear to eliminate any possible burrs on gear tooth edges to improve the break-in process.

Details:

Fitment 2018 and Newer Jeep JL Wrangler Models

Equipped with Dana 30 Front or Dana 44 AdvanTEK^® Front/Rear
Available Ratios from 4.56 thru 5.13
Forged 8620 Alloy Material for Optimal Strength
CNC Lapped for Quiet Operation
Hand Dressed to Eliminate Burrs

Select Vehicle Model *
Select Axle Location *
Select Axle Location *
Select Front Gear Set *
Select Front Gear Set *
Select Rear Gear Set *
Select Gear Sets *
Select Gear Sets *
Add Gear Oil *
Add Gear Oil *

$249.99

Qty:

Dana 30 AdvanTEK M186 Front
Material	8620 alloy steel
Ring Gear Diameter	7.1"
Carrier Break	3.73 and up
Gear Rotation	Reverse
Ring Gear Bolts	3/8"-24
Pinion Spline	24
Pinion Thread	7/8"-20
Pinion Nut Socket	1 1/8" Socket
Dana 44 AdvanTEK M210 Front
Material	8620 Alloy Steel
Ring Gear Diameter	8.2"
Carrier Break	3.73 and Down
Gear Rotation	Reverse
Ring Gear Bolts	M12 x 1.25
Pinion Spline	28
Pinion Thread	M24 x 2.0
Pinion Nut Socket	32 mm Socket (1-1/4" Socket is a VERY tight fit)
Dana 44 AdvanTEK M220 Rear
Material	8620 Alloy Steel
Ring Gear Diameter	8.6"
Carrier Break	3.73 and Down
Gear Rotation	Standard
Ring Gear Bolts	M12 x 1.25
Pinion Spline	28
Pinion Thread	M24 x 2.0
Pinion Nut Socket	32 mm Socket (1-1/4" Socket is a VERY tight fit)
